Sungshim IV Infusion Sets (Standard, Y-Type, Air-Vented)
The Infusion Set (I.V. Set) is a sterile disposable medical device designed for the controlled administration of intravenous fluids, medications, and blood products to patients in hospital and clinic settings. It supports safe, contamination-reduced fluid delivery for use by trained healthcare professionals.
Sungshim's infusion set range includes standard sets, air-vent cap sets, Y-site sets, flow regulator sets, extension tubes, and specialty filter and regulator sets, giving healthcare facilities configuration options suited to different fluid administration needs.
Follow the fluid path from the container through priming and an illustrative clamp adjustment.
↔ Swipe the diagram to see it in full
Illustrative process only—not a flow-rate or dosing calculator. Product instructions, the prescription, and facility protocol control clinical use.

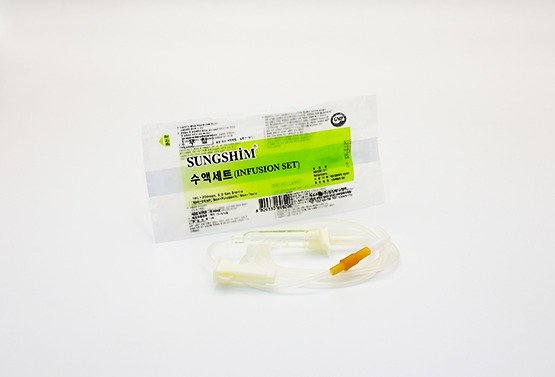

Infusion Set
| Model | Description | Inner Box | Carton Box |
|---|---|---|---|
| V1000 | IV fluid set, without needle | 50 pcs | 500 pcs |
| V1001 | IV set with 23G×1" infusion needle |

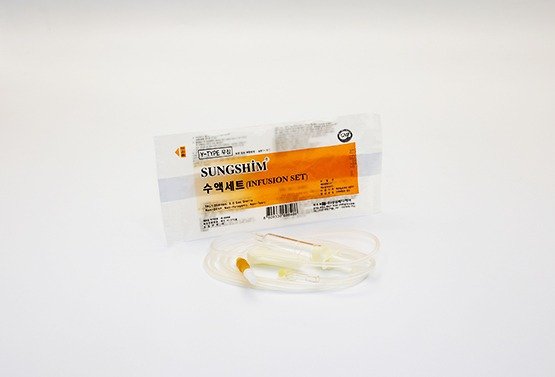

Infusion Set (Y-type)
| Model | Description | Inner Box | Carton Box |
|---|---|---|---|
| VY1000 | IV fluid set, Y-type (no needle) | 50 pcs | 500 pcs |
IV Filter Set (Y-site)
| Model | Inner Box | Carton Box |
|---|---|---|
| SFY4-301 | 30 pcs | 300 pcs |
IV Filter Set (3-way Type)
| Model | Inner Box | Carton Box |
|---|---|---|
| 3FY4-226 | 30 pcs | 300 pcs |

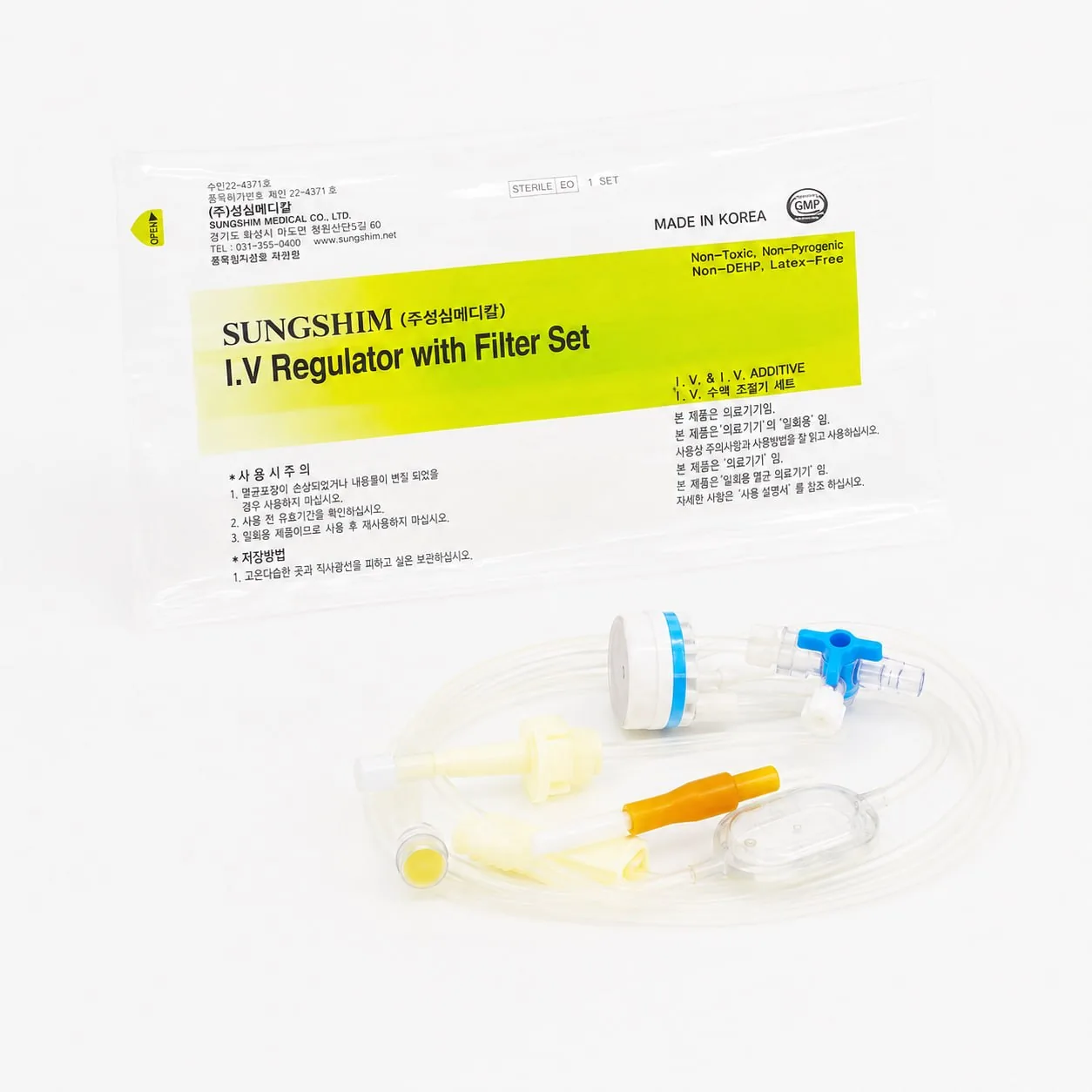

IV Flow Regulator with Filter Set
| Model | Inner Box | Carton Box |
|---|---|---|
| VAFR500 | 30 pcs | 240 pcs |

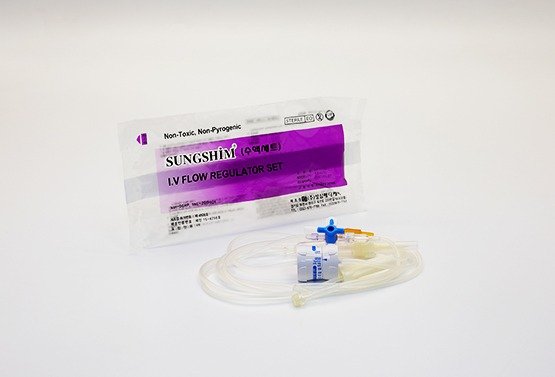

IV Flow Regulator Set
| Model | Inner Box | Carton Box |
|---|---|---|
| VAFR200 | 30 pcs | 240 pcs |

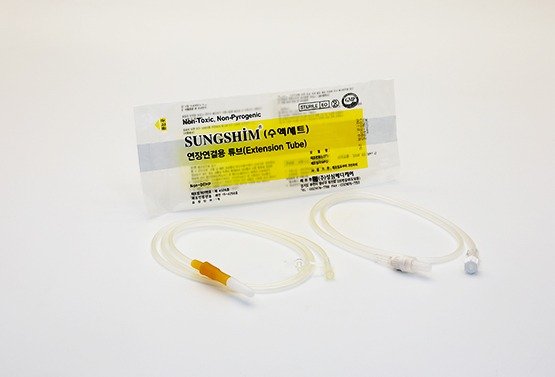

Extension Tube
| Model | Description | Inner Box | Carton Box |
|---|---|---|---|
| EXT-600 | IV line, 60 cm | 50 pcs | 1,000 pcs |
| EXT-900 | IV line, 90 cm | ||
| EXT-1200 | IV line, 120 cm |
- DEHP-free PVC
- EO gas sterilization
- Wide range of configurations available
| Model | Air vent cap | Y-site | Needle | 3-way stopcock | Regulator | Luer Lock | Remarks |
|---|---|---|---|---|---|---|---|
| V1000 | - | - | - | - | - | - | W/O |
| V1001 | - | - | - | - | - | - | 23G×1" |
| VY1000 | - | O | - | - | - | - | Y-type |
| VY1001 | - | O | - | - | - | - | Y-type + 23G×1" |
| V1003 | - | - | O | - | - | - | Butterfly needle |
| VA1000 | O | - | - | - | - | - | Aircap |
| VA1001 | O | - | - | - | - | - | Aircap + 23G×1" |
| AY1000 | O | O | - | - | - | - | Aircap + Y-type |
| AY1001 | - | O | - | - | - | - | Aircap + Y-type + 23G×1" |
| AR1000 | - | - | - | - | O | - | Aircap + Regulator |
| AR1001 | - | - | - | - | O | - | Aircap + Regulator + 23G×1" |
| ARY1000 | - | O | - | - | O | - | Aircap + Regulator + Y-type |
| (60drop) | |||||||
| ARY3000 | - | O | - | O | O | - | Aircap + Regulator + Y-type + 3way |
| - | O | (60drop) | |||||
| O | - | Aircap + Regulator + Y-type + 3way + 23G×1" | |||||
| EXT-600 | - | - | - | - | - | - | Extension Tube 60Cm |
| EXT-900 | - | - | - | - | - | - | Extension Tube 90Cm |
| EXT-1200 | - | - | - | - | - | - | Extension Tube 120Cm |
| EXT(L/C)-600 | - | - | - | - | - | O | Extension Tube 60Cm + Lock Tip |
| EXT(L/C)-900 | - | - | - | - | - | O | Extension Tube 90Cm + Lock Tip |
| EXT(L/C)-1200 | - | - | - | - | - | O | Extension Tube 120Cm + Lock Tip |
| EXT(Re)-600 | - | - | - | - | O | - | Extension Tube 60Cm + Regulator |
| EXT(Re)-900 | - | - | - | - | O | - | Extension Tube 90Cm + Regulator |
| EXT(Re)-1200 | - | - | - | - | O | - | Extension Tube 120Cm + Regulator |
| Model | Length | Inner Box | Carton Box | Remarks |
|---|---|---|---|---|
| EXT-600 | 600mm | 50pcs | 1,000pcs | - |
| EXT-900 | 900mm | |||
| EXT-1200 | 1200mm |
| Product Name | Diagram | Note |
|---|---|---|

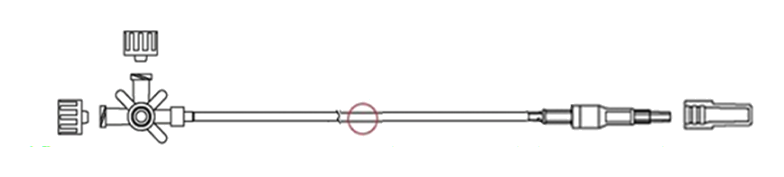

| E3W-1 |  |
3-way Extension Tube, 10 cm |

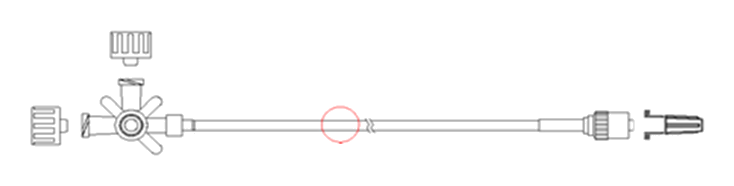

| E3W-101 |  |
3-way Extension Tube, 10 cm |

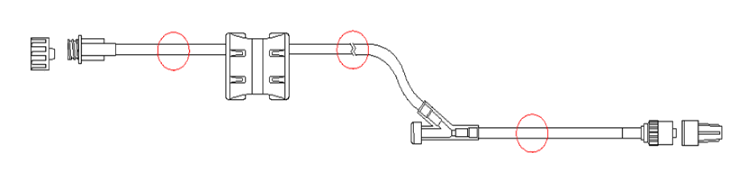

| ERY-500 |  |
Regulator Extension Tube |
Please inquire separately for non-standard sizes.
| Type | Model | 5㎛ | Y-site | Regulator | 3-way stopcock | Check valve | Remarks |
|---|---|---|---|---|---|---|---|
| SCY-400 | - | O | - | - | O | Y-type + check valve | |
| SAY-530 | - | O | - | O | - | Y-type +3way | |
| Filter | SFY4-310 | O | O | - | - | - | Microfilter (5㎛) + Y-type |
| 3FY4-226 | O | O | - | O | - | Microfilter(5㎛) + Y-type +3way | |
| Regulator | SRY-400 | - | O | O | - | - | Regulator + Y-type |
| VAFR200 | - | O | O | O | - | Regulator + Y-type +3way | |
| Filter Regulator | VAFR120 | O | O | O | O | O | Microfilter (5㎛) +Regulator + Y-type +Check valve |
| VAFR150A | O | O | O | - | O | Microfilter (5㎛) +Regulator + Y-type +Check valve | |
| VAFR550 | O | O | O | - | - | - |
For other sizes, please contact us.
-
Preparation
- Inspect the packaging for any damage, missing parts, or expired products before use.
- Wash hands thoroughly before handling the infusion set.
- Hang the IV bag or bottle securely and spike it using the provided connector.
-
Usage Procedure
- Prime the drip chamber and tubing to remove all air bubbles before connecting to the patient.
- Adjust the roller clamp or flow regulator to achieve the prescribed drip rate.
- Connect the infusion set to the patient's vascular access device (IV cannula or port).
- Monitor the infusion site for signs of infiltration or phlebitis throughout administration.
- Observe the IV bag level and flow rate continuously to ensure proper fluid delivery.
- After infusion is complete, safely disconnect the set from the patient following facility protocol.
- This product is intended for single use only, do not reuse.
- Dispose of used infusion sets in a sealed, puncture-resistant sharps container and follow proper disposal regulations.
Warnings
- Do not use if the packaging is damaged, opened, or contaminated.
- Do not use if any component is cracked, leaking, or otherwise defective.
Precautions
- Use only for its intended purpose.
- Always prime the tubing to remove all air bubbles before connecting to the patient; residual air poses a risk of air embolism.
- Do not exceed the prescribed flow rate.
- Monitor the infusion site regularly for signs of infiltration or phlebitis.
- This is a single-use sterile product; reuse is strictly prohibited.
- Users must be trained in proper use and handling before operating this device.
This product is intended for the controlled delivery of intravenous fluids, medications, or blood products from a fluid container to a patient via a vascular access device, for use by trained healthcare professionals in hospital and clinic settings.
- Shelf Life: 3 years from the date of manufacture
- Packaging: Individual sterile packaging by listed model and configuration variant
- Storage Conditions: Store at room temperature; avoid exposure to direct sunlight, heat, and humidity
Note: This is a medical device. Please read all instructions and safety guidelines carefully before use.
